| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

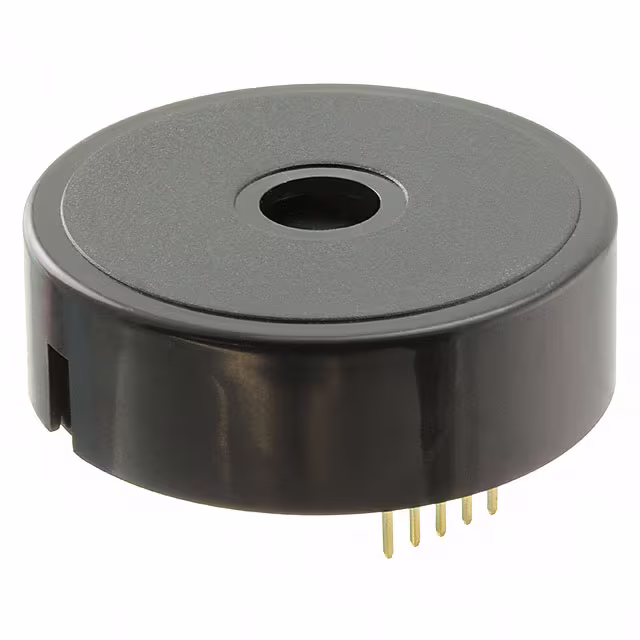

SBT12MMPPCBUZZER PIEZO 44.5MM TH |
2290 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752 Dia (44.50mm) |
|

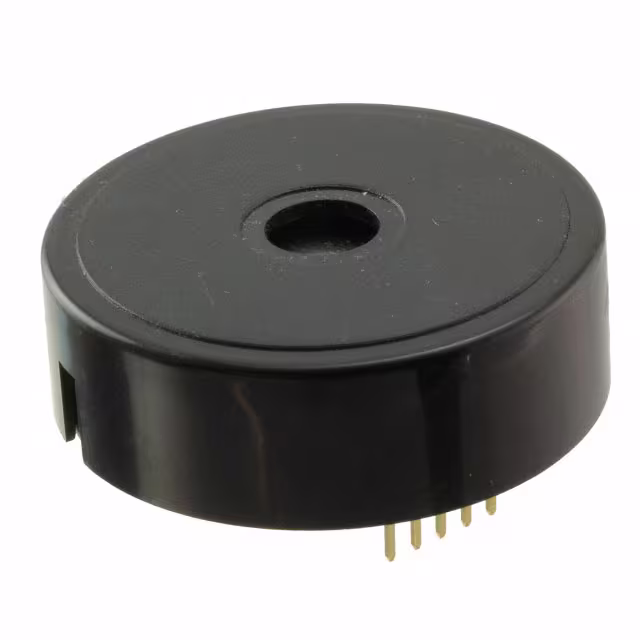

SBT12MMTPCBUZZER PIEZO 44.5MM TH |
2534 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752 Dia (44.50mm) |
|

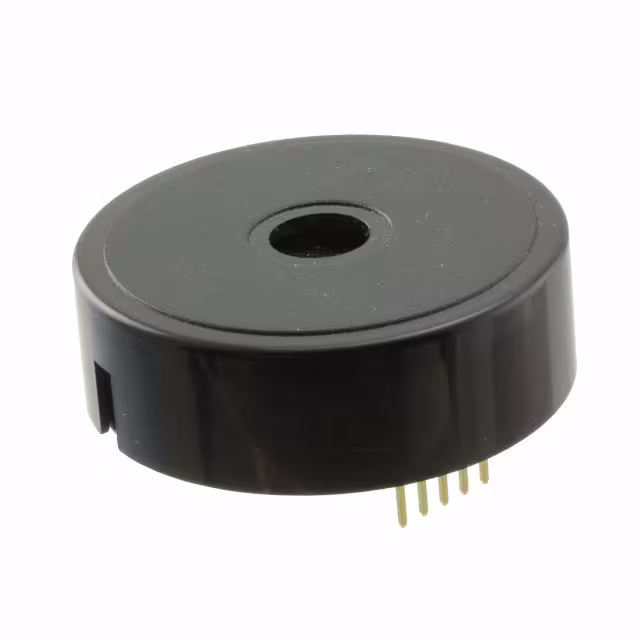

SBT12MMVPCBUZZER PIEZO 44.5MM TH |
3803 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752 Dia (44.50mm) |
|

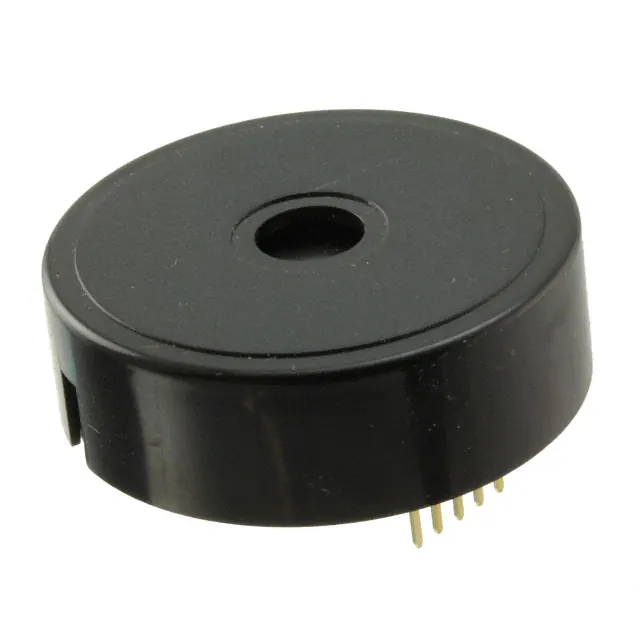

SBT12MMXPCBUZZER PIEZO 44.5MM TH |
3411 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752 Dia (44.50mm) |
|
ZA028MACTBUZZER PIEZO 30.74MM PNL MNT |
3646 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Single Tone | - | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016SDDP2BUZZER PIEZO 30.74MM PNL MNT |
3996 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016SDDP3BUZZER PIEZO 30.74MM PNL MNT |
3045 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 65dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
ZA028SDDP2BUZZER PIEZO 30.74MM PNL MNT |
3235 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016LDDP3BUZZER PIEZO 30.74MM PNL MNT |
3041 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016MDDP2BUZZER PIEZO 30.74MM PNL MNT |
3498 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 75dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016MDDP3BUZZER PIEZO 30.74MM PNL MNT |
2368 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 75dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA028MDDP2BUZZER PIEZO 30.74MM PNL MNT |
3344 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA028MDDP3BUZZER PIEZO 30.74MM PNL MNT |
3619 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA028LDDP2BUZZER PIEZO 30.74MM PNL MNT |
2062 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA028LDDP3BUZZER PIEZO 30.74MM PNL MNT |
3455 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA028SDDP3BUZZER PIEZO 30.74MM PNL MNT |
3086 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016LDDP2BUZZER PIEZO 30.74MM PNL MNT |
3065 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016LDDL1BUZZER PIEZO 30.74MM PNL MNT |
2068 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Single Tone | 10 Sec On-Delay | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016LDPS1BUZZER PIEZO 30.74MM PNL MNT |
3144 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Short | 1 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
|
|
ZA016LDSS1BUZZER PIEZO 30.74MM PNL MNT |
3517 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZA | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Single Tone | 1 Min On-Time | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210 Dia (30.74mm) |
