| 图片 | 型号 # | 库存 | 数量 | 数据表 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP710024RELAY GEN PURPOSE SPDT 16A 24V |
2968 |
添加到购物车立即咨询 |
Datasheet |
Box | RP II/1, SCHRACK | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
RP818012RELAY GEN PURPOSE SPDT 12A 12V |
2960 |
添加到购物车立即咨询 |
Datasheet |
Box | RP II/1, SCHRACK | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
RP818024RELAY GEN PURPOSE SPDT 12A 24V |
3894 |
添加到购物车立即咨询 |
Datasheet |
Box | RP II/1, SCHRACK | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
RP820012RELAY GEN PURPOSE DPDT 8A 12V |
2589 |
添加到购物车立即咨询 |
Datasheet |
Tube | RP II/2, SCHRACK | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
RP820024RELAY GEN PURPOSE DPDT 8A 24V |
3264 |
添加到购物车立即咨询 |
Datasheet |
Box | RP II/2, SCHRACK | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
RY210012RELAY GEN PURPOSE SPDT 8A 12V |
2555 |
添加到购物车立即咨询 |
Datasheet |
Bulk | RY, SCHRACK | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 19.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
RY210024RELAY GEN PURPOSE SPDT 8A 24V |
2982 |
添加到购物车立即咨询 |
Datasheet |
Tube | RY, SCHRACK | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 10.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
SRUDH-SH-112D1,000RELAY GEN PURPOSE SPDT 12A 12V |
3245 |
添加到购物车立即咨询 |
Datasheet |
Tube | SRUDH, OEG | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
|
SRUDH-SH-124D1,000RELAY GEN PURPOSE SPDT 12A 24V |
3280 |
添加到购物车立即咨询 |
Datasheet |
Tube | SRUDH, OEG | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) |
|
T7CV5D-05RELAY GEN PURPOSE SPDT 12A 5V |
2664 |
添加到购物车立即咨询 |
Datasheet |
Tube | T7C | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
T7CV5D-24RELAY GEN PURPOSE SPDT 12A 24V |
3479 |
添加到购物车立即咨询 |
Datasheet |
Tube | T7C | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|

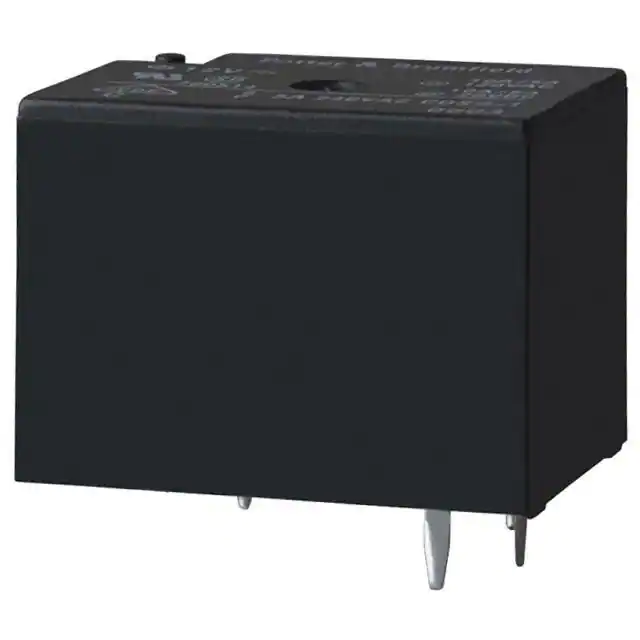

T7NS1D1-12RELAY GEN PURPOSE SPST 10A 12V |
3404 |
添加到购物车立即咨询 |
Datasheet |
Tube | T7N | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 240VAC, 28VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|

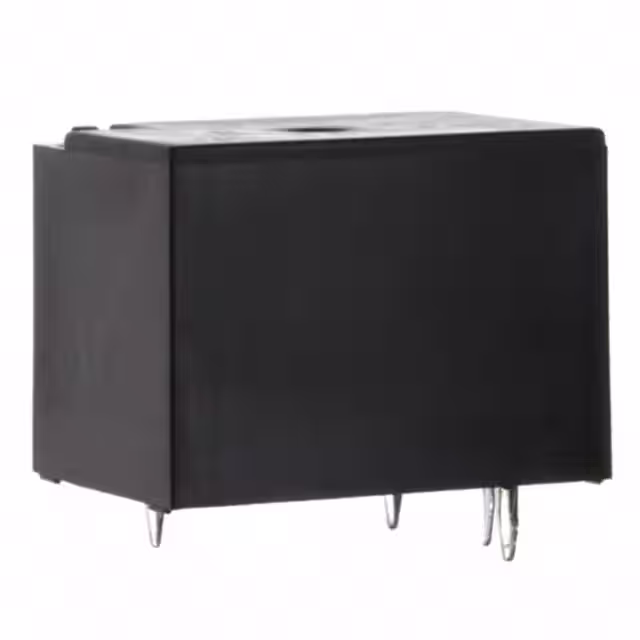

T7NS1D1-24RELAY GEN PURPOSE SPST 10A 24V |
2582 |
添加到购物车立即咨询 |
Datasheet |
Tube | T7N | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 240VAC, 28VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
PRDA-11DYA-24RELAY GEN PURPOSE DPDT 25A 24V |
2698 |
添加到购物车立即咨询 |
Datasheet |
Tray | PRDA | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Max | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) |
|
|
KBP-17DG-24RELAY GEN PURPOSE 4PDT 10A 24V |
3743 |
添加到购物车立即咨询 |
Datasheet |
Bulk | KBP | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 120VAC - Max | 104 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 18 VDC | - | - | - | - | - |
|
KBP-20DG-110RELAY GEN PURPOSE 5PDT 10A 110V |
2623 |
添加到购物车立即咨询 |
Datasheet |
Bulk | KBP | Obsolete | Socketable | 110VDC | 5PDT (5 Form C) | 10 A | 120VAC - Max | 24 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
KBP-20AG-120RELAY GEN PURPOSE 5PDT 10A 120V |
3884 |
添加到购物车立即咨询 |
Datasheet |
Bulk | KBP | Obsolete | Socketable | 120VAC | 5PDT (5 Form C) | 10 A | 120VAC - Max | 68 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
KBP-17AG-120RELAY GEN PURPOSE 4PDT 10A 120V |
3552 |
添加到购物车立即咨询 |
Datasheet |
Bulk | KBP | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 10 A | 120VAC - Max | 44 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
KBP-17DG-110RELAY GEN PURPOSE 4PDT 10A 110V |
2109 |
添加到购物车立即咨询 |
Datasheet |
Bulk | KBP | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 10 A | 120VAC - Max | 24 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
CSL-38-30010RELAY GEN PURPOSE DPDT 10A 24V |
3890 |
添加到购物车立即咨询 |
Datasheet |
Bulk | CS | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - |
