| 图片 | 型号 # | 库存 | 数量 | 数据表 | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

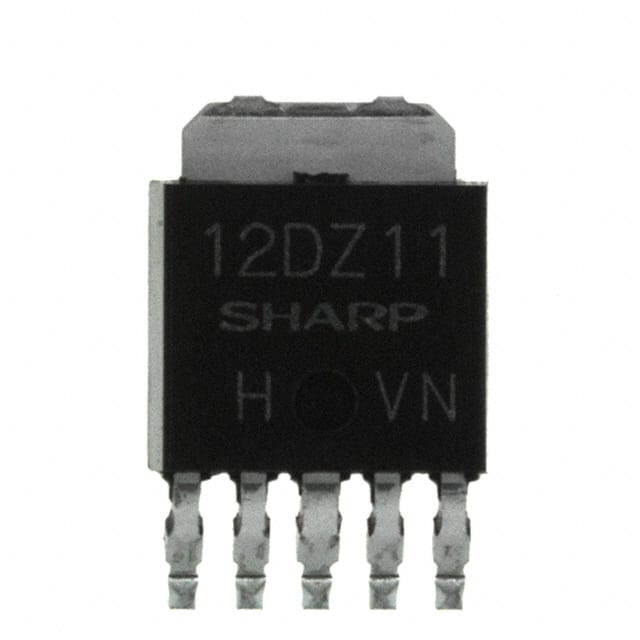

PQ12DZ1UJ00HIC REG LINEAR 12V 1A SC63 |
3851 |
添加到购物车立即咨询 |
Datasheet |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 24V | 12V | - | 0.5V @ 500mA | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
PQ12DZ5UJ00HIC REG LINEAR 12V 500MA SC63 |
3160 |
添加到购物车立即咨询 |
Datasheet |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 24V | 12V | - | 0.5V @ 300mA | 500mA | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
|
PQ20WZ5UJ00HIC REG LINEAR POS ADJ 500MA SC63 |
2247 |
添加到购物车立即咨询 |
Datasheet |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Adjustable | 1 | 24V | 3V | 20V | 0.5V @ 300mA | 500mA | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
|
PQ3DZ53UJ00HIC REG LINEAR 3.3V 500MA SC63 |
3754 |
添加到购物车立即咨询 |
Datasheet |
TO-252-6, DPak (5 Leads + Tab) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Positive | Fixed | 1 | 24V | 3.3V | - | 0.5V @ 300mA | 500mA | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
FAN1086M5XIC REG LINEAR 5V 1.5A TO263-3 |
2032 |
添加到购物车立即咨询 |
Datasheet |
TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 1 | 7.5V | 5V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | Surface Mount |
|
FAN1585ADXIC REG LINEAR POS ADJ 5A TO252AA |
2898 |
添加到购物车立即咨询 |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR) | - | Obsolete | Positive | Adjustable | 1 | 18V | 1.5V | 3.6V | 1.3V @ 5A | 5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 25°C ~ 125°C | Surface Mount |
|
FAN2502S33XIC REG LINEAR 3.3V 150MA SOT23-5 |
2391 |
添加到购物车立即咨询 |
Datasheet |
SC-74A, SOT-753 | Tape & Reel (TR) | - | Obsolete | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.18V @ 150mA | 150mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | Surface Mount |
|
LM317LZTFRIC REG LIN POS ADJ 100MA TO92-3 |
3263 |
添加到购物车立即咨询 |
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | - | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | - | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
LM7806ACTIC REG LINEAR 6V 1A TO220-3 |
3143 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7806CTIC REG LINEAR 6V 1A TO220-3 |
3925 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Through Hole |
|
|
LM7808ACTIC REG LINEAR 8V 1A TO220-3 |
2194 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7810ACTIC REG LINEAR 10V 1A TO220-3 |
3198 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube,Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 10V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 71dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7810CTIC REG LINEAR 10V 1A TO220-3 |
3405 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube,Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 10V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 71dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Through Hole |
|
|
LM7818ACTIC REG LINEAR 18V 1A TO220-3 |
3433 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 18V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 69dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7824ACTIC REG LINEAR 24V 1A TO220-3 |
2948 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 67dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7906CTIC REG LINEAR -6V 1A TO220-3 |
2442 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Negative | Fixed | 1 | -35V | -6V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7908CTIC REG LINEAR -8V 1A TO220-3 |
3367 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Negative | Fixed | 1 | -35V | -8V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7909CTIC REG LINEAR -9V 1A TO220-3 |
3506 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Negative | Fixed | 1 | -35V | -9V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7910CTIC REG LINEAR -10V 1A TO220-3 |
3433 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Negative | Fixed | 1 | -35V | -10V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
|
LM7912CTIC REG LINEAR -12V 1A TO220-3 |
2644 |
添加到购物车立即咨询 |
Datasheet |
TO-220-3 | Tube | - | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
